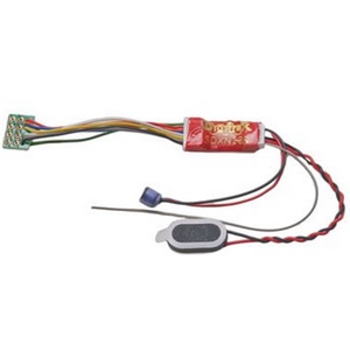

This exciting new one amp mobile 16, 12 or 8 Bit Sound decoder from Digitrax has all the great Loco Motion features you’ve come to expect and Sound FX, too! Based on proven locomotive decoder technology, the addition of downloadable sound will simply blow you away! Ready to run with pre-loaded sounds or customizable with your own recordings. Supports the playable whistle feature with F2 key on DT500 or DT500D throttles.

Available on backorder

SKU: sdxn136ps Category:


  • Customizable 16 Bit Sounds
  • Includes 28 mm Plug-In Speaker
  • Sound Keep-Alive feature available
  • Rated at One Amp-For use in all scales
  • 128 Speed Steps
  • Available for Steam, Diesel or Electric
  • Downloadable Sound
  • Over twelve unique programmable & controllable Sounds
  • Supports Playable Whistle
  • Programmable on any DCC Programming Track No Special Equipment Needed

Scales: N and HO Scales Lighting Effects:� FX3 Installation Type: Plug & Play
Current (RMS): 1 Amp Current (Peek): 1.25 Amps Function Outputs: 6 @ 100ma
Size Length: . 1″ Size Width: .0.41 Size Height: 0.19
Addressing: 2 and 4 Digit Consisting: Basic/Advanced Decoder Reset: Yes
Speed Steps: 14, 28 and 128 Quiet Motor Mode: Yes Back EMF: Yes
Weight .25 lbs
Dimensions 9 × 5 × .25 in
